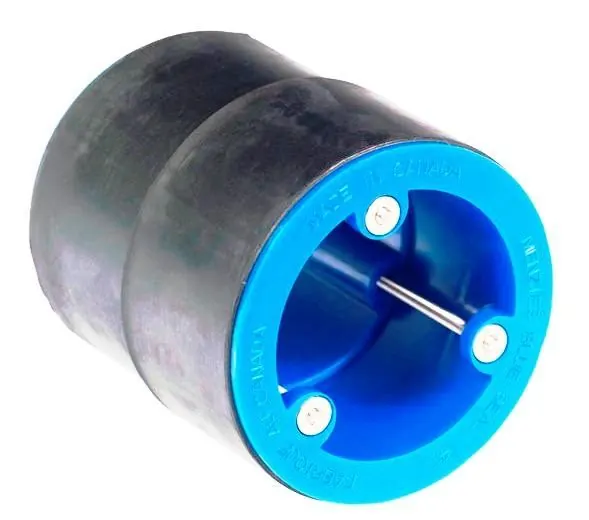

Menzies Blue Drain Seal™

blue drain seal

Menzies Blue Drain Seal™

$155.75 – $237.32

Part #

500-2-2-32

Resources

Sizing and Dimensional Table Technical Drawing relaxed Technical Drawing compressed 3D Drawing Long Specifications Short Specifications MSDS Installation Instructions Product Approvals BIM content/Revit BIM content AutoCAD

You cannot purchase this product online. Please call to purchase item directly from our warehouse.

Description

Size	Weight	Part #
3" (76mm)	0.56lbs	300-3130
4" (102mm)	0.98lbs	300-3135
5" (127mm)	1.05lbs	300-3140
6" (152mm)	1.20lbs	300-3145

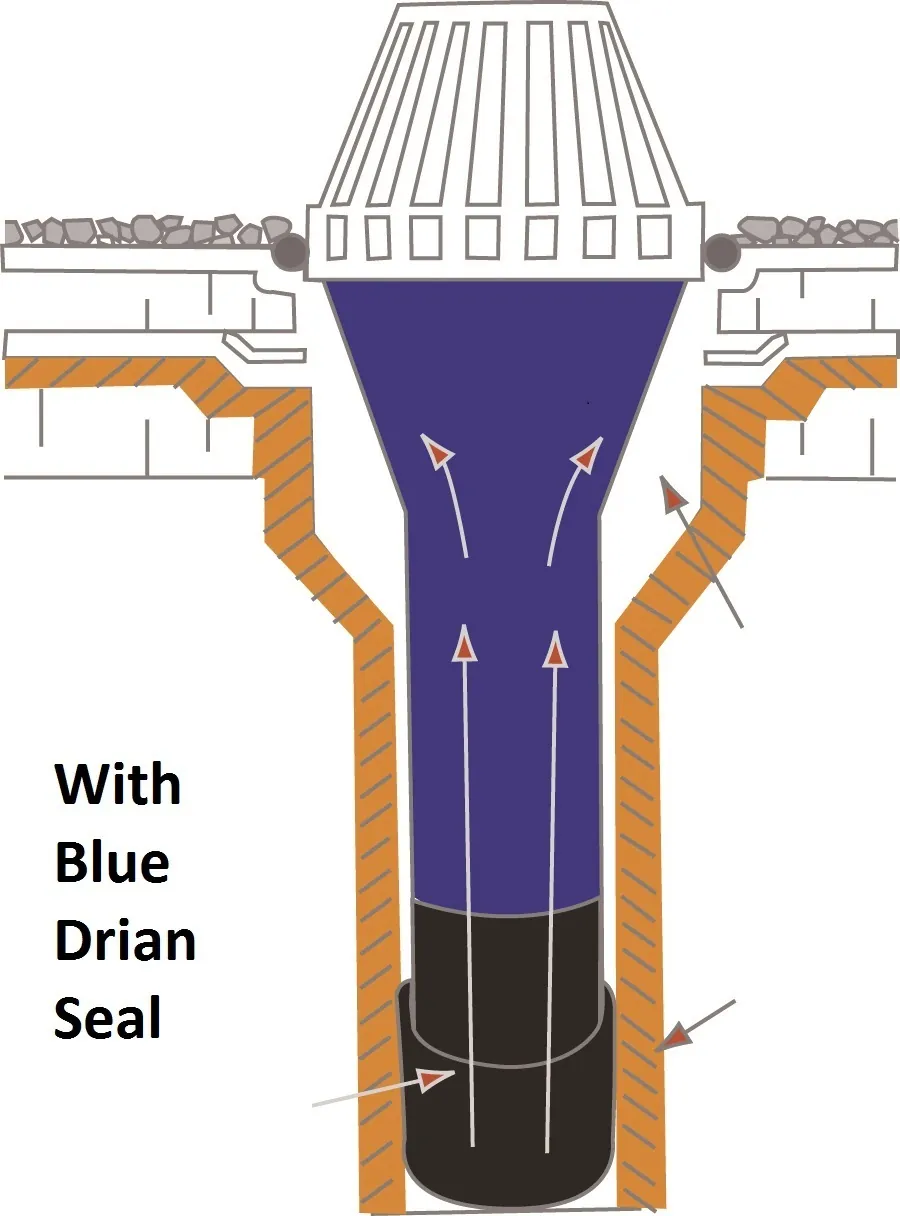

Provides complete seal between drain and outlet pipe connections.

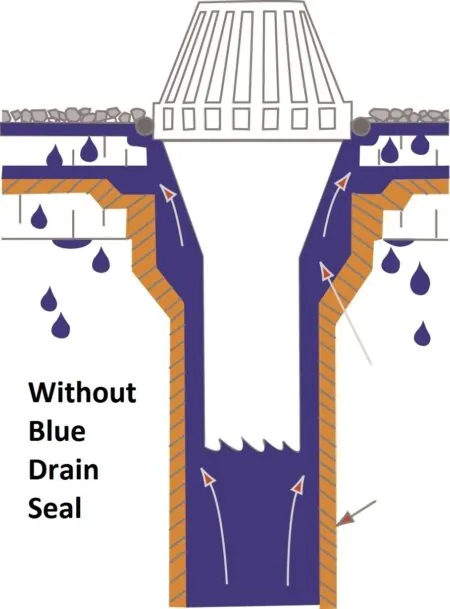

Prevents water back-up damage when using insert drains.
Available in sizes 3″ (76mm), 4 (102mm)”, 5″ (127mm) and 6″ (152mm).
Available 24″ (610mm) Screwdriver for Blue Drain Seal™.
Listed to meet Canadian and U.S. standards by QAI. Meets CSA B79 and ASME A112.6.4.
Receive a FREE 24″ screwdriver when you order 6 or more Blue Seals. Please request this in the ‘Order Comments’ box.

082418
