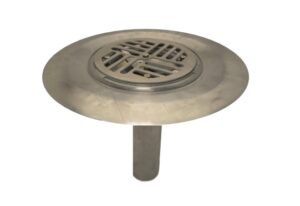

Clamp-Tite Aluminum Flat Top Drain no Bowl

$364.15$414.89

Part #
N/A
You cannot purchase this product online. Please call to purchase item directly from our warehouse.
Size Weight Part #
2" (1 7/8" OD) 3.35lbs 300-3450
3" (2.75" OD) 3.55lbs 300-3451
4" (3.75" OD) 3.75lbs 300-3452

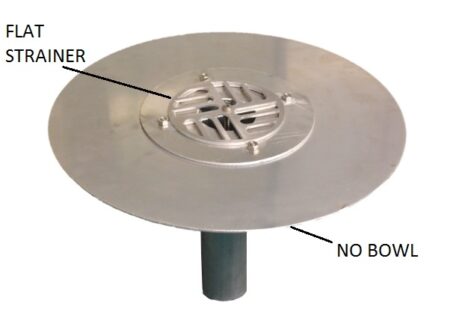

  • No bowl flat top aluminum drains with clamping ring.
  • Heavy construction to withstand foot traffic.
  • Total Height from Deck .56″ (14mm).
  • Stocked insert sizes 2″ (1 7/8″ OD); 51mm (48mm OD), 3″ (2.75″ OD); 76mm (70mm OD), 4″ (3.75″ OD); 102mm (95mm OD).
  • Used in foot traffic areas in concrete substrate.
  • High strainers would be intrusive or inappropriate.
  • Flat bottom, no bowl sits flat on concrete with cored hole through concrete, where drain with bowl will not work.
  • Same connections as conventional drain.
  • 2″ and 3″ listed to meet Canadian and U.S. standards by QAI. Meets CSA B79 and ASME A112.6.3.
  • Longer pipes available.
