Spun Copper Deck Drain

Spun Copper Deck Drain TPO

$130.89 – $147.24

Part #

500-2-2-52

Resources

Technical drawing 3D Drawing Long Specifications Short Specifications MSDS Installation Instructions Product Approvals

You cannot purchase this product online. Please call to purchase item directly from our warehouse.

Description

Size	Weight	Part #
2" 51mm (1 3/4" OD) 44mm OD	1.55lbs	300-3220
2" 51mm DWV (2" ID) 51mm ID	1.80lbs	300-3222
3" 76mm (2 3/4" OD) 70mm OD	1.80lbs	300-3223

For use over heated and non-heated areas.

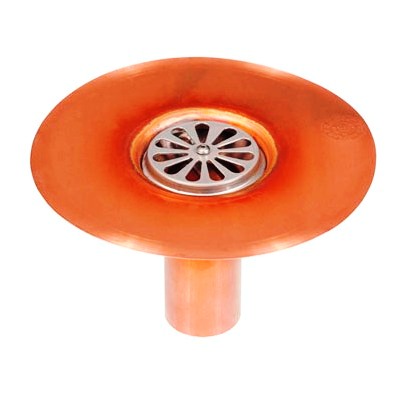

Flush spun copper deck drain for pedestrian traffic areas.
Standard 4″ (102mm) flange.
Available in 2″ (51mm) & 3″ (76mm) insert, 2″ & 3″ DWV, and 2″ & 3″ no hub.
NOTE: Drain should be used only in a visible maintenance area in conjunction with auxiliary overflow drains.
2″ (300-3220 AND 300-3222) listed to meet Canadian and U.S. standards by QAI, meet CSA B79 and ASME A112.6.4.
Also available in TPO Direct Weld™.
Longer pipes available.
