| Size | Weight | Part # |
|---|---|---|
| 2" | 3.61lbs | 300-3180 |
| 3" | 3.87lbs | 300-3185 |
| 4" | 4.48lbs | 300-3190 |
- Clamping ring bolts down into compression fit mounting ring.
- Stainless steel screw fastens die-cast aluminum strainer.
- No vertical studs to interfere with membrane.

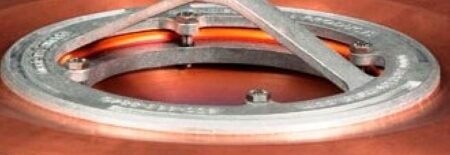

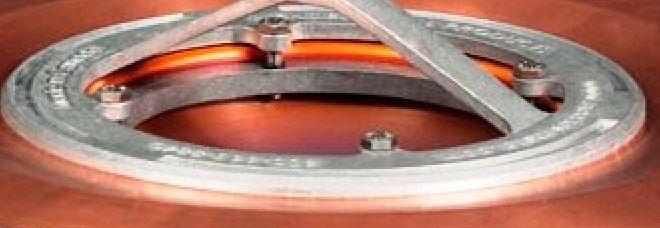

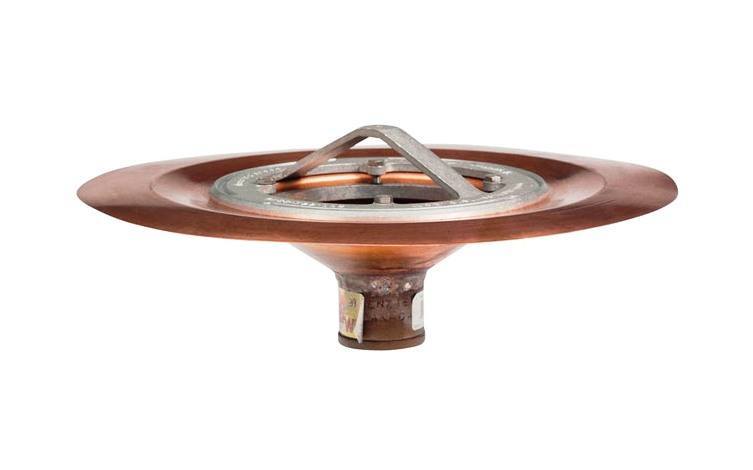

- Lower clamping ring mount is embedded in the drain bowl. No bolts penetrating drain body.

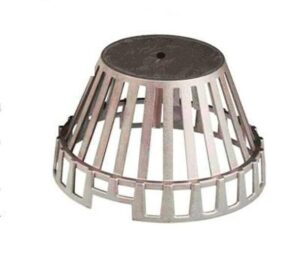

- Cast aluminum strainer.
- All fasteners are stainless steel.
- Stocked in insert sizes 2″ (51mm), 3″ (76mm)and 4″ (102mm).
- Listed to meet Canadian and U.S. standards by QAI. Meets CSA B79 and ASME A112.6.4.
- For complete seal assurance this product works best when used with Menzies Blue Drain Seal.
- Also available in TPO Direct Weld™.
