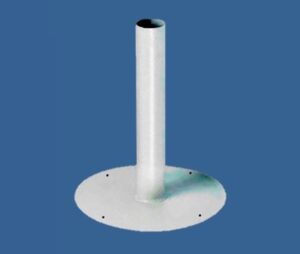

Plumbing Stack Aluminum Flat – Welded

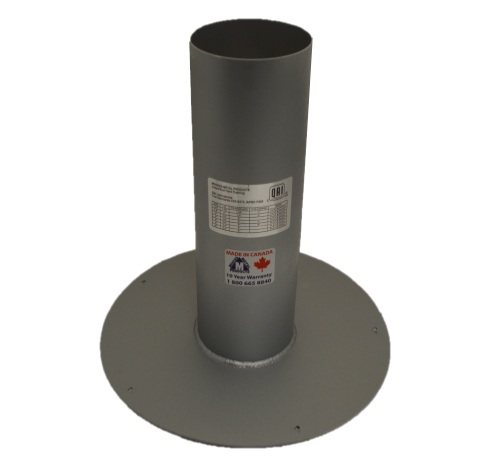

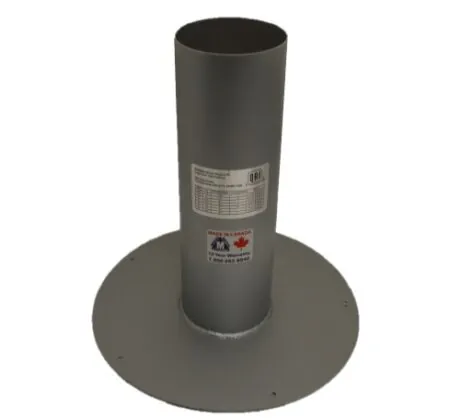

Aluminum Pipe Flashing welded

$21.37 – $130.21

Part #
500-2-2-79
Clear
Quantity:

Resources

Technical drawing 3D Drawing Long Specifications Short Specifications MSDS Installation Instructions Product Approvals BIM Content Revit BIM Content Revit text
You cannot purchase this product online. Please call to purchase item directly from our warehouse.
Height Weight Part #
1 1/4″ 32mm x 12″ 305mm 12″ 305mm 0.85lbs .37kg 400-3105
1 1/4″ 32mm x 18″ 457mm 18″ 457mm 1.00lbs .44kg 400-3105-18
1 1/4″ 32mm x 24″ 610mm 24″ 610mm 1.25lbs .54kg 400-3105-24
1 1/2″ 38mm x 12″ 305mm 12″ 305mm 1.00lbs .44kg 400-3110
1 1/2″ 38mm x 18″ 457mm 18″ 457mm 1.30lbs .57kg 400-3110-18
1 1/2″ 38mm x 24″ 610mm 24″ 610mm 1.60lbs .70kg 400-3110-24
2″ 51mm x 12″ 305mm 12″ 305mm 1.00lbs .44kg 400-3115
2″ 51mm x 18″ 457mm 18″ 457mm 1.40lbs .61kg 400-3115-18
2″ 51mm x 24″ 610mm 24″ 610mm 1.65lbs .72kg 400-3115-24
3″ 76mm x 12″ 305mm 12″ 305mm 1.35lbs .59kg 400-3120
3″ 76mm x 18″ 457mm 18″ 457mm 1.80lbs .78kg 400-3120-18
3″ 76mm x 24″ 610mm 24″ 610mm 2.25lbs .98kg 400-3120-24
4″ 102mm x 12″ 305mm 12″ 305mm 1.65lbs .72kg 400-3125
4″ 102mm x 18″ 457mm 18″ 457mm 2.20lbs .96kg 400-3125-18
4″ 102mm x 24″ 305mm 24″ 610mm 2.65lbs 1.1kg 400-3125-24
5″ 127mm x 12″ 305mm 12″ 305mm 2.20lbs .96kg 400-3130
5″ 127mm x 18″ 457mm 18″ 457mm 2.65lbs 1.1kg 400-3130-18
5″ 127mm x 24″ 305mm 24″ 610mm 3.05lbs 1.3kg 400-3130-24
6″  152mm x 12″ 305mm 12″ 305mm 2.50lbs 1.1kg 400-3131
6″ 152mm x 18″ 457mm 18″ 457mm 2.95lbs 12.9kg 400-3131-18
6″ 152mm x 24″ 305mm 24″ 610mm 3.45lbs 1.5kg 40-3131-24
7″ 178mm x 12″ 305mm 12″ 305mm 4.00lbs 1.7kg 400-3132
8″ 203mm x 12″ 305mm 12″ 305mm 4.20lbs 1,8kg 400-3133

• Heavy aluminum extruded tube, HOTWELDED to a round flange with pre-drilled holes for easy
fastening.
• Available in sizes 1 ¼”, 1 ½”, 2”, 3”, 4”, 5”, 6”, 7″ and 8″.
• Custom lengths and diameters available by special order.
• Available in all pitches by special order.
• Listed to meet Canadian and U.S. standards by QAI. Meets CSA B272 and IAPMO PS 64.
• Also available in TPO Direct Weld™.

040716

Additional Information:

Heavy aluminum pipe flashing with full flange HOTWELDED to resist torching.
Meets Canadian and U.S. standards.
Available in Menzies TPO Direct Weld™ for fast installation on TPO Roofing Systems.
