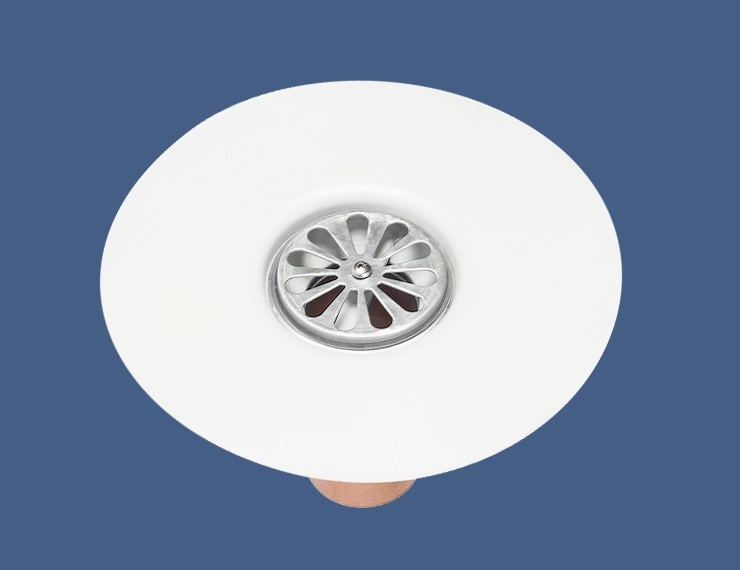

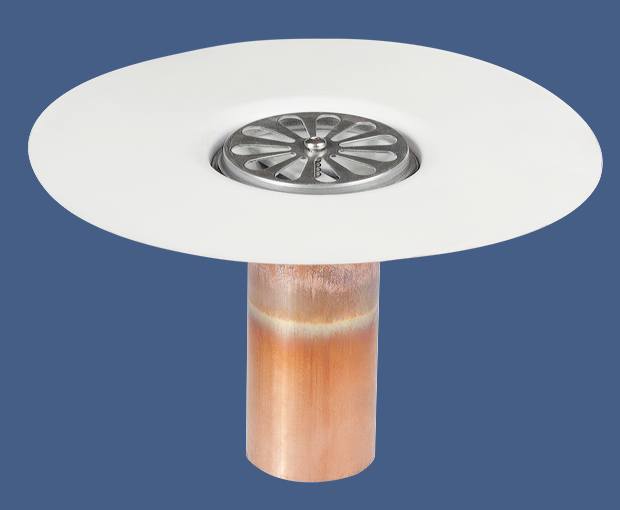

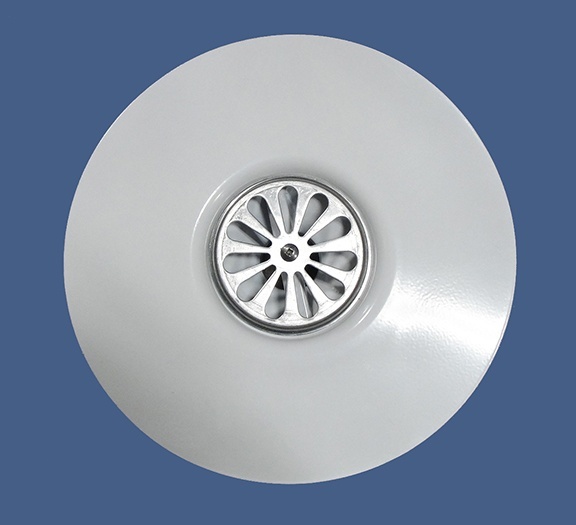

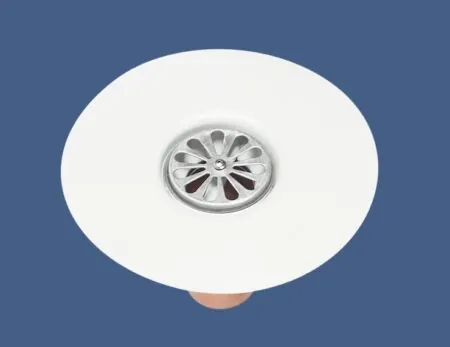

Spun Copper Deck Drain TPO

Spun Copper Deck Drain TPO
Spun Copper Deck Drain
Deck Drain Spun TPO

116.51 – 126.86

Part #
500-2-2-55
Clear
Quantity:

Resources

Technical drawing Long Specifications Short Specifications MSDS Product Approvals
You cannot purchase this product online. Please call to purchase item directly from our warehouse.
Size Color Weight Part #
2″ 51mm (1 3/4″ 44mm OD) 1.55lbs .68kg 300-3220TPO
2″ 76mm DWV (2″ 76mm ID) 1.80lbs .78kg 300-3222TPO
3″ 102mm (2 3/4″ 95mm OD) 1.80lbs .78kg 300-3223TPO
  • For use over heated and non-heated areas.
  • Flush spun copper deck drain for pedestrian traffic areas.
  • Standard 4” 102mm flange.
  • Available in 2” & 3” (51mm & 76mm) insert, 2″ & 3″ (51mm & 76mm), and 2” & 3″ (51mm & 76mm) no hub.
  • NOTE: Drain should be used only in a visible maintenance area in conjunction with auxiliary overflow drains.
  • 1¾” 44mm (300-3220) and 2” 51mm (300-3220 AND 300-3222 listed to meet Canadian and U.S. standards by QAI, meet CSA B79 and ASME A112.6.4.
  • Menzies TPO Direct Weld™ for fast installation on TPO Roofing Systems.
  • Longer pipes available.

011018
