|3" (76mm) downspout||4.50lbs||300-3063TPO|
- Clamping collar to secure membrane to flange.

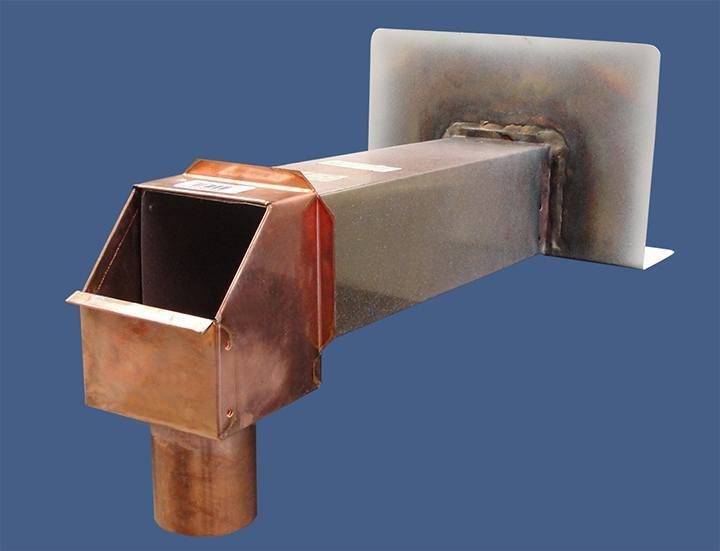

- Full 4″ (102mm) flange, 4″ x 4″ x 17″ (102mm x 102mm x 432mm) outlet box with an overflow and cleanout box.
- Outlet box can be trimmed to wall thickness.
- Longer outlet boxes available.
- 3″ (76mm) insert size pipe in the overflow and cleanout box.
- No need to cut an oversized hole to pass the scupper through the wall.

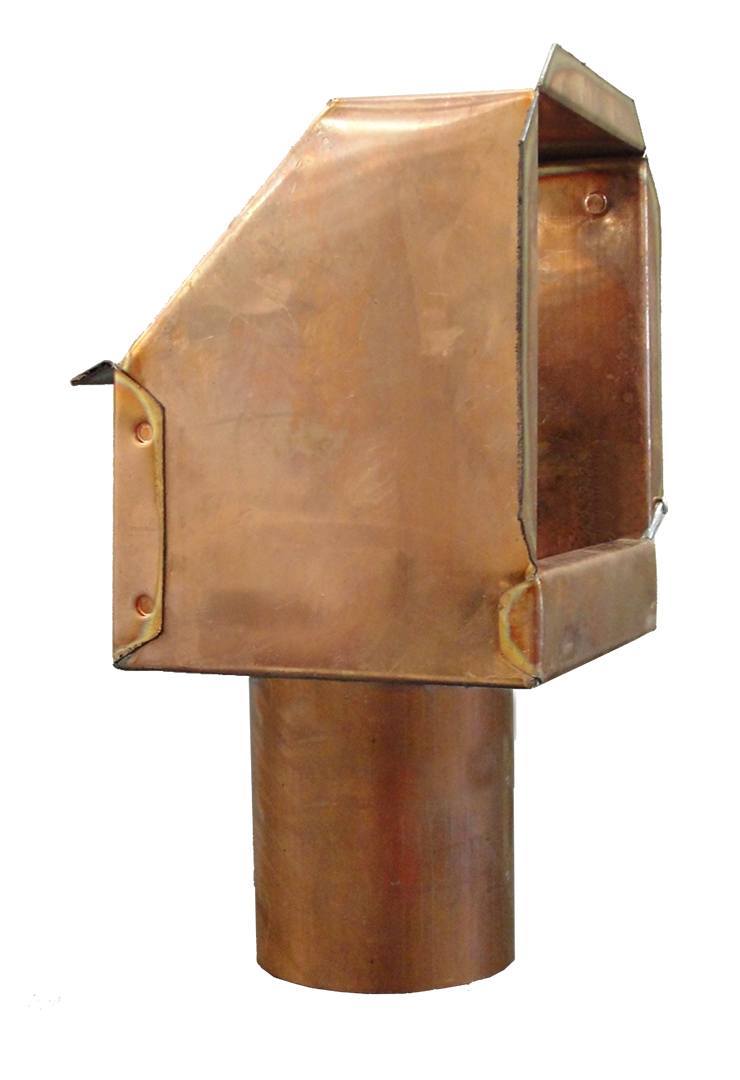

- The all-in-one overflow and clean out box will be attached to the outlet box on the exterior of the finished wall.
- Stainless steel fasteners.
- Listed to meet Canadian and U.S. standards by QAI. Meets CSA B272 and IAPMO PS 64.

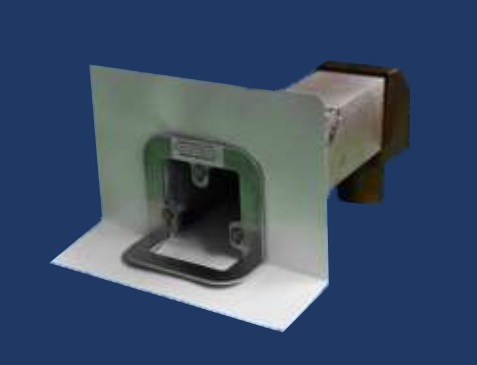

- Menzies TPO Direct Weld™ for fast installation on TPO Roofing Systems.
- STRAINER KIT AVAILABLE: link https://menzies-metal.com/strainer-kit-clamp-tite-box-scupper
