|2″ 51mm (1 7/8″ 44mm OD)||3.70lbs 1.6kg||300-3390TPO|
|3″ 76mm (2 3/4″ 70mm OD)||3.95lbs 1.7kg||300-3395TPO|
|4″ 102mm (3 3/4″ 95mm OD)||4.00lbs 1.7kg||300-3400TPO|
|5″ 127mm (4 3/4″ 121mm OD)||7.00lbs 3.1kg||300-3401TPO|
|6″ 162mm (5 3/4″ 146mm OD)||8.00lbs 3.49kg||300-3402TPO|

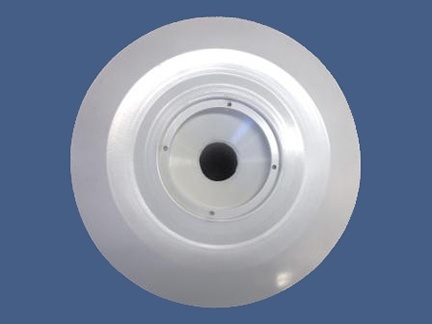

• TPO coated flange.
• Clamping ring bolts down into compression fit mounting ring.
• Stainless steel screw fastens die-cast aluminum strainer.
• No vertical studs to interfere with membrane.
• Lower clamping ring mount is embedded in the drain bowl. No bolts penetrating drain body.
• Cast aluminum strainer.
• All fasteners are stainless steel.
• Listed to meet Canadian and U.S. standards by QAI. Meets CSA B79 and ASME A112.6.4.
• For complete seal assurance this product works best when used with Menzies Blue Drain Seal.
• Also available as No Hub outlet model.
• Menzies TPO Direct Weld™ for fast installation on TPO Roofing Systems.
• Longer pipes available.
