| Size | Weight | Part # | |
|---|---|---|---|
| 2″ 51mm (1 7/8″ 48mm OD) | 3.70lbs 1.61kg | 300-3390 | |
| 3″ 76mm (2 3/4″ 70mm OD) | 3.95lbs 1.7kg | 300-3395 | |
| 4″ 102mm (3 3/4″ 95mm OD) | 4.00lbs 1.7kg | 300-3400 | |
| 5″ 127mm (4 3/4″ 121mm OD) | 5.00lbs 2.2kg | 300-3401 | |
| 6″ 152mm (5 3/4″ 146mm OD) | 6.00lbs 2.61kg | 300-3402 |

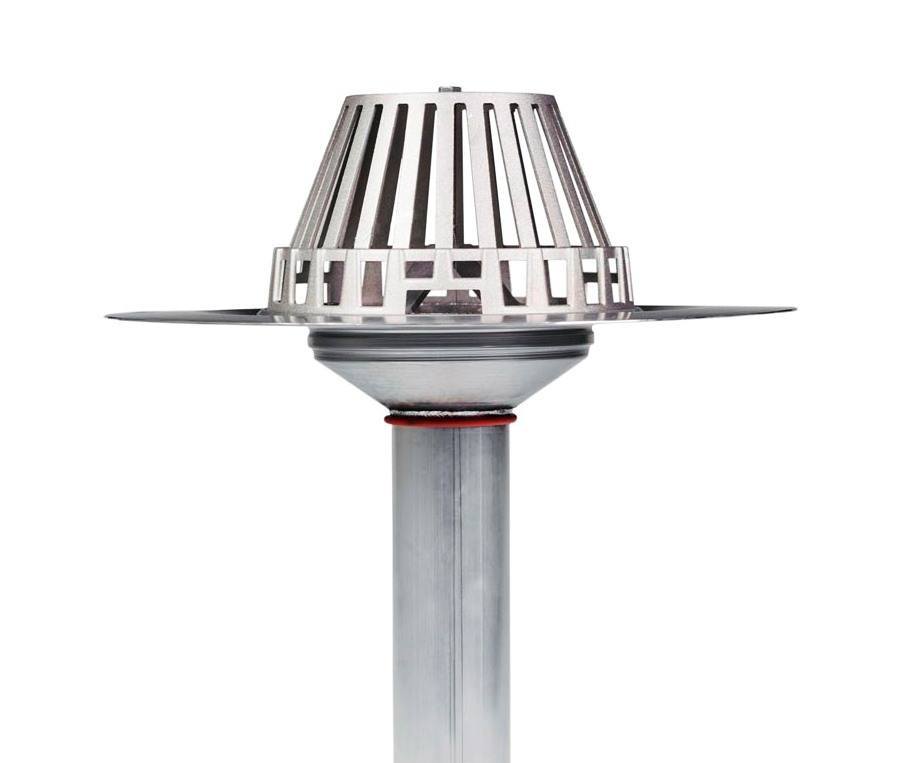

• Clamping ring bolts down into compression fit mounting ring.
• Stainless steel screw fastens die-cast aluminum strainer.
• No vertical studs to interfere with membrane.

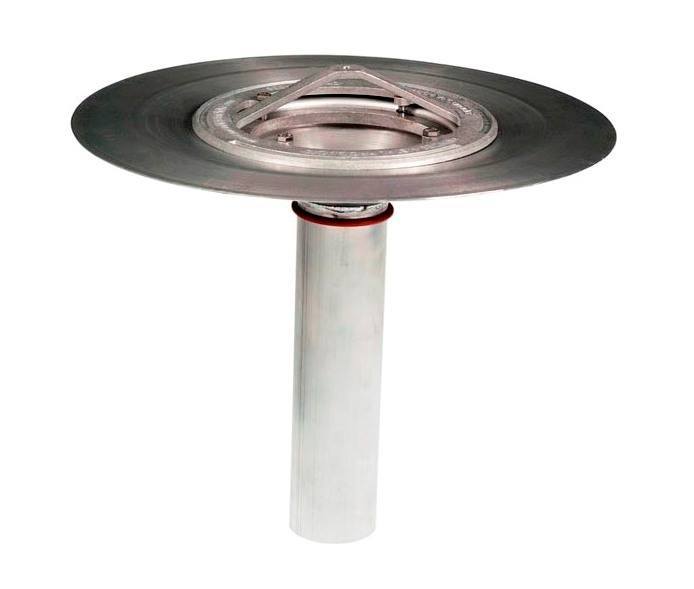

• Lower clamping ring mount is embedded in the drain bowl. No bolts penetrating drain body.
• Cast aluminum strainer.
• All fasteners are stainless steel.
• Listed to meet Canadian and U.S. standards by QAI. Meets CSA B79 and ASME A112.6.4.
• For complete seal assurance this product works best when used with Menzies Blue Drain Seal.
• Also available as No Hub outlet model.

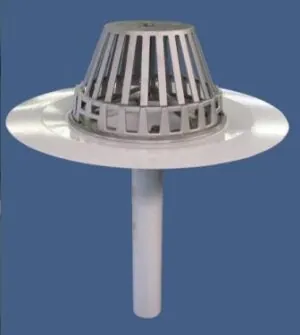

• Also available in TPO Direct Weld™.
• Longer pipes available.
