|2" (1 3/4" OD)||4.05lbs||300-3150|
|3" (2 3/4" OD)||4.95lbs||300-3155|
|4" (3 3/4" OD)||5.50lbs||300-3160|
- Flat shallow bowl fits existing drains with shallow bowls.
- Stainless steel screw fastens down cast aluminum strainer.

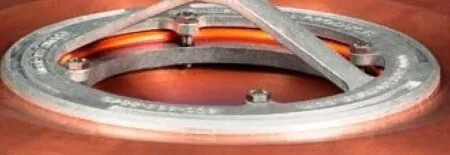

- Lower clamping ring mount is spun into drain bowl. It’s embedded. No bolts protruding through drain body.
- Cast aluminum strainer fastened with hex head stainless steel screw. Custom pipe lengths available by request.
- Stocked in insert sizes 2″ (51mm), 3″ (76mm)and 4″ (102mm).
- 3″ and 4″ compatible with Blue Drain Seal™.
- Listed to meet Canadian and U.S. standards by QAI. Meets CSA B79 and ASME A112.6.4.
- For complete seal assurance this product works best when used with Menzies Blue Drain Seal.
- Also available in TPO Direct Weld™.
- Longer pipes available.
