|2" (1 3/4" OD)||4.05lbs||300-3150TPO|
|3" (2 3/4" OD)||4.95lbs||300-3155TPO|

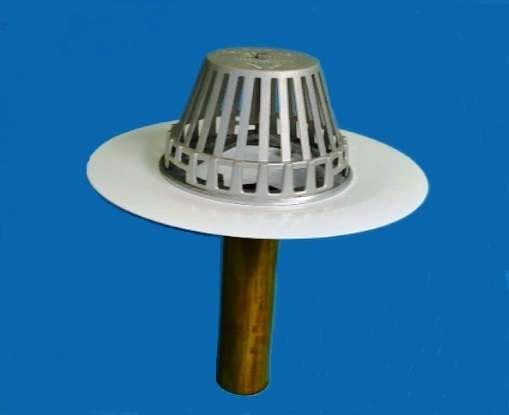

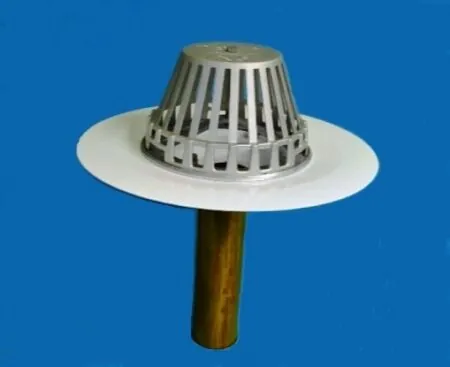

- TPO coated flange.
- Flat shallow bowl fits existing drains with shallow bowls.
- Stainless steel screw fastens down aluminum aluminum strainer.
- Lower clamping ring mount is spun into drain bowl. It’s embedded. No bolts protruding through drain body.
- Cast aluminum strainer fastened with hex head stainless steel screw.
- Stocked in insert sizes 2″ (51mm), 3″ (76mm)and 4″ (102mm).
- Custom pipe lengths available by request.
- 3″ and 4″ compatible with Blue Drain Seal™.
- Listed to meet Canadian and U.S. standards by QAI. Meets CSA B272 and IAPMO PS 64.
- For complete seal assurance this product works best when used with Menzies Blue Drain Seal.
- Menzies TPO Direct Weld™ for fast installation on TPO Roofing Systems.
- Longer pipes available.

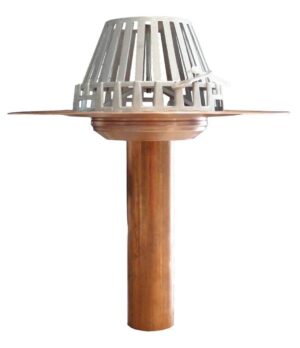

The Clamp-Tite clamping system ensures a proper membrane seal.
3″ and 4″ compatible with Blue Drain Seal™.
Menzies TPO Direct Weld™ for fast installation on TPO Roofing Systems.
