| Size | Color | Height | Length | Width | Weight | Part # |
|---|---|---|---|---|---|---|
| 4″ 102mm | White | 8.0″ 203mm | 15.0″ 381mm | 15.0″ 381mm | 2.08lbs .91kg | 602-1705TPO |
| 5″ 127mm | White | 8.0″ 203mm | 17.0″ 432mm | 17.0″ 432mm | 2.30lbs 1.00kg | 602-1710TPO |
| 6″ 152mm | White | 8.0″ 203mm | 17.0″ 432mm | 17.0″ 432mm | 2.64lbs 1.15kg | 602-1715TPO |
| 7″ 178mm | White | 8.0″ 203mm | 18.0″ 457mm | 18.0″ 457mm | 2.94lbs 1.28kg | 602-1720TPO |
| 8″ 203mm | White | 8.0″ 203mm | 19.0″ 483mm | 19.0″ 483mm | 3.26lbs 1.42kg | 602-1725TPO |
| 9″ 229mm | White | 8.0″ 203mm | 20.0″ 508mm | 20.0″ 508mm | 3.60lbs 1.57kg | 602-1730TPO |
| 10″ 254mm | White | 8.0″ 203mm | 21.0″ 533mm | 21.0″ 533mm | 4.30lbs 1.87kg | 602-1735TPO |
| 11″ 279mm | White | 8.0″ 203mm | 22.0″ 559mm | 22.0″ 559mm | 5.10lbs 2.22kg | 602-1740TPO |
| 12″ 305mm | White | 8.0″ 203mm | 23.0″ 584mm | 23.0″ 584mm | 5.60lbs 2.44kg | 602-1745TPO |

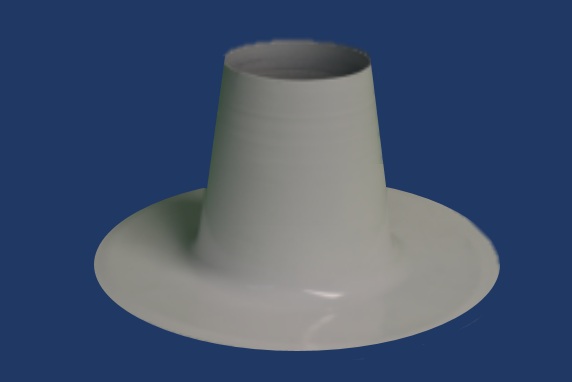

• Seamless one piece construction made from heavy gauge aluminum.
• Eliminates framed curbs.
• Seamless for high temperature torch-on roofing systems.
• 8” 203mm water height.
• Available sizes in one inch increments from 4″ to 12”.
• Menzies TPO Direct Weld™ for fast installation on TPO Roofing Systems.
